In a bathroom under 40 sq ft, the number that decides whether the room works is not the floor area. It is the clear floor space left over once the fittings are in — and the only reliable way to win that space back is to get things off the floor and keep every wet fitting in one corner. A 6 ft x 6 ft bathroom laid out as three separate zones feels cramped at every turn. The same room with a wall-hung pan, a 500 mm vanity and a single wet corner feels ordinary. Below is how to plan it in that order, with real sizes and real prices from our catalogue.
Start with clear floor space, not with fittings
Most small-bathroom plans go wrong because they begin at the showroom. Reverse it. Draw the room to scale, mark the door swing and the drain positions, then block out the floor you must leave empty.
Three working minimums carry most of the load. Roughly 600 mm of clear floor in front of the WC, so you can sit and stand without turning sideways. About 700 mm in front of the basin, to bend over it. And a dry patch at least 600 mm deep near the door to towel off without stepping into a puddle. Add those up and a 6 ft x 6 ft room has very little left to give; everything below is about buying those three rectangles back.
Drain positions are the second constraint and the more expensive one to fight. Moving a WC outlet means breaking the floor and re-laying the stack connection, rarely worth the disruption in an Indian flat. Measure what you have before you shop — our guide on S-trap vs P-trap and how to measure your toilet rough-in covers it. A P-trap outlet is a gift here, because it lets you use a wall-hung pan and recover the floor beneath it.
The basin: 400 mm of wall is enough
The basin is where most small bathrooms lose 200 mm for no return. A full pedestal basin needs a clear wall run and a floor footprint, and the pedestal puts a solid column where a bucket wants to live. Under 40 sq ft, a table-top basin on a narrow counter does the same job in less wall.
The smallest we stock is the JCB164 at 40 x 30 cm, which sits on a 450 mm counter with room to spare. If your wall run is awkward rather than short — a thin strip beside the door — the JCB222 at 50 x 30 cm is only 300 mm deep and suits that shape better than anything square.
| Basin | Size | Price | Best in a small room when |
|---|---|---|---|
| JCB164 table-top, white and gold | 40 x 30 cm | ₹3,750 | Wall run is the binding constraint |
| JCB024 table-top, white and grey | 45 x 32.5 cm | ₹3,000 | Budget is tight and you have 450 mm |
| JCB222 table-top, white | 50 x 30 cm | ₹4,898 | Counter is shallow, not narrow |
| JCB215 table-top, white | 37 x 37 cm | ₹6,299 | You want the smallest square footprint |
| JPDS1036 pedestal, white matt stone | 450 mm square | ₹27,750 | Honestly, only if plumbing is already set for it |

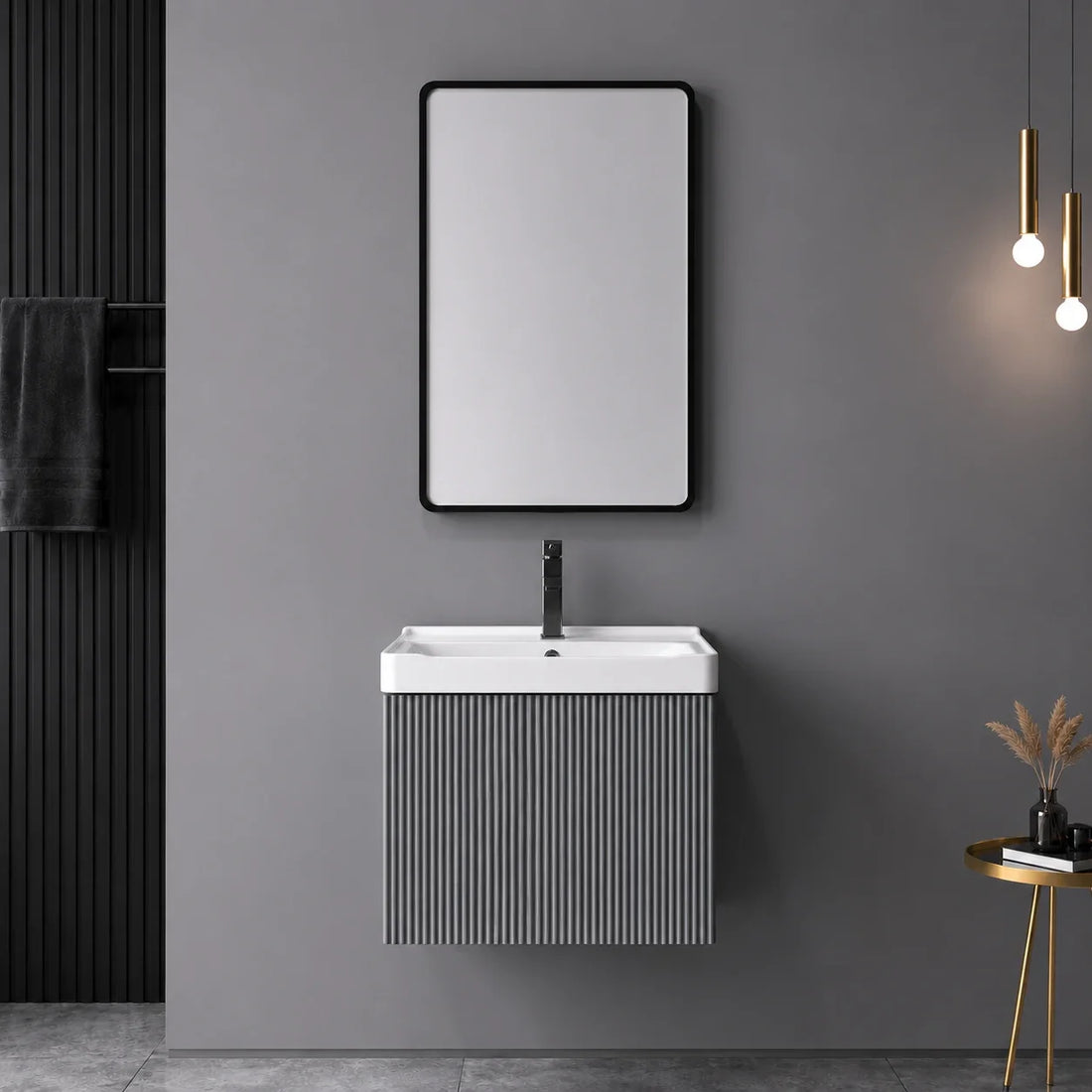

If you want storage with the basin — and here you do, because there is nowhere else for it — a compact vanity is the better buy. The JBV01040 is 500 mm wide at ₹12,000 with a tall 720 mm mirror, using vertical wall rather than horizontal. The JBV01025, also 500 mm, is ₹7,725 if the budget is tighter. The narrowest we carry is the JBV01047A, a 450 mm sintered marble unit with LED mirror at ₹12,750 — it has no tap hole, so plan on a wall-mounted mixer such as the JPDS1058 at ₹6,750. The JBV01047B is the same unit with a tap hole.
A 500 mm vanity 450 mm deep still projects 450 mm into the room. If your door opens inward onto that wall, measure the arc. Fitting a sliding or outward-opening door is cheaper than discovering the clash after the cabinet is on the wall.
The WC: projection is the number that matters
Width is never the problem with a commode. Projection — how far it sticks out from the wall — is, because that comes straight out of your 600 mm of clear floor. A floor-mounted unit with an inbuilt flush tank such as the JCT01005 at ₹20,999 is a fine fitting in a normal bathroom and the wrong call here: the tank adds depth and the pedestal blocks the floor you need for mopping. A wall-hung pan solves both — the floor runs clean underneath and the cistern goes inside the wall. Our most compact is the SIMON at 533 mm projection, ₹5,760.
| WC | Type | Projection | Price |
|---|---|---|---|
| ROZY | Wall hung, P-trap, soft close | Not stated | ₹3,499 |
| SCOPE | Wall hung, square, P-trap | Not stated | ₹3,599 |
| SIMON | Wall hung, soft close | 533 mm | ₹5,760 |
| PINTAS | Wall hung, soft close | 584 mm | ₹7,240 |
| HOP | One piece, S or P trap | Not stated | ₹10,300 |
| JCT01005 | Floor mount, inbuilt tank | Not stated | ₹20,999 |
Budget for the flush arrangement alongside the pan. A concealed flush valve such as the FI01014 at ₹1,465 runs in the wall and gives a flat plate instead of a tank — worth it purely for the depth saved. You will also want concealed stop valves; the 15 mm FO01012 is ₹1,140 and puts isolation inside the wall rather than on a bracket at shin height.
The wet corner: one zone, not two
The single biggest spatial gain in a small Indian bathroom comes from refusing to have a separate bath area and shower area. Pick one corner, put the shower and the floor drain there, slope the floor to it, and let the rest of the room stay dry. A glass partition or even a well-hung curtain across that corner is enough; a full enclosure eats space it cannot justify at this size. Which drain you put in that corner shapes the floor around it, because a linear channel and a square floor drain ask for different slopes — see our rundown of the stainless steel floor and shower channel drains.
Within that corner, keep the fitting flat against the wall. A shower panel does more in less depth than a separate overhead arm, diverter and hand shower, because it is all on one plate. The JSP01002 is a 304 steel 5-in-1 tower with rainfall and body jets at ₹7,999 in four finishes. For the same idea cheaper, the JSS01027 is a 3-function steel panel with rain shower and bucket filler at ₹3,899 — and the bucket filler matters more here than people expect, because a bucket on the floor is often how the room actually gets used.
Keeping an existing wall mixer and only want better overhead coverage? The OHS01008 ultra-slim square rain head starts at ₹630, from 6 x 6 inch up to 24 x 24 inch. Resist the large sizes — a 12 x 12 inch head over a 900 mm corner throws water past the partition every time.
A 15-litre storage geyser wants the wall above the wet corner, and an exhaust fan wants an external wall as high as possible. Those two claims compete with your mirror, your shelf and your overhead shower for the same square metre of upper wall. Decide the order before the electrician arrives, because a wrongly placed geyser bracket is the one mistake in a small bathroom you cannot design around afterwards.
Storage and accessories: go vertical, and go narrow
Small bathrooms fail at storage, not at fitting. The vanity takes the bulk of it; everything else hangs on wall you were not otherwise using — above the WC, behind the door, in the corner above the wet zone.
A folding towel rack is the accessory worth attention. The FLDRCK is SS 304 with four hooks at ₹999 and folds flat when empty, which in a 6 ft room is the difference between walking past it and walking into it. A fixed rail such as the ALB1005 at ₹875 is fine on a wall you never brush against; put it behind the door, not beside the basin.
Self-adhesive fittings earn their place here for a reason beyond convenience: every drilled hole in a small bathroom is a commitment, and here you will change your mind. The self-adhesive corner shelf and straight shelf are ₹299 each in matte black and can be repositioned; the JIBS012 metal corner shelf is ₹2,300 if you would rather drill. Our guide to fitting bathroom accessories without drilling covers surface prep, because on textured Indian tiles adhesive mounting is only as good as the surface.
Round out with a NYB1001 robe hook at ₹200 and a NYB1002 towel ring at ₹375. Browse self-adhesive accessories, bathroom shelves and robe hooks.
Two real budgets
Both columns below are a complete fittings list for a bathroom under 40 sq ft, priced from the current catalogue. Neither includes labour, plumbing materials, tiling, the geyser or the exhaust fan — those are site costs and vary widely by city.
| Item | Lean plan | Mid plan |
|---|---|---|
| WC | ROZY ₹3,499 | SIMON ₹5,760 |
| Concealed flush valve | FI01014 ₹1,465 | FI01014 ₹1,465 |
| Basin or vanity | JCB164 ₹3,750 | JBV01040 ₹12,000 |
| Basin mixer | LE01024 ₹4,850 | LE01024 ₹4,850 |
| Shower | JSS01027 ₹3,899 | JSP01002 ₹7,999 |
| Towel storage | FLDRCK ₹999 | ALB1005 ₹875 + NYB1002 ₹375 |
| Robe hook | NYB1001 ₹200 | NYB1001 ₹200 |
| Shelf | Self-adhesive corner ₹299 | JIBS012 ₹2,300 |
| Fittings total | ₹18,961 | ₹35,824 |
The jump between the two is mostly the vanity and the shower panel, and that is the right place to spend if you have it. A 500 mm vanity solves storage, which in a small bathroom is the problem that nags daily; a consolidated shower panel reduces wall clutter in the one zone where clutter is unavoidable.
The order of work
- Measure the room, mark the door swing, and record the existing WC outlet type and rough-in distance.
- Block out your three clear-floor rectangles — WC, basin, dry standing area — before choosing any fitting.
- Fix the wet corner and the floor drain position. Everything else arranges itself around it.
- Choose the WC by projection, then the basin or vanity by wall run, then the tap to match the basin's tap-hole arrangement.
- Settle the geyser and exhaust fan positions on the drawing, and only then allocate the remaining upper wall to mirror and shelving.
- Order accessories last, once the fittings are in and you can see what wall is actually free.
In a room this size, mixing chrome taps with black accessories and a steel shower panel reads as clutter rather than contrast, because you see all three at once. Pick one finish and hold it across taps, shower and accessories — and if your water is hard, that choice has consequences worth reading about in our comparison of chrome, matt black and gold finishes.
What to take from this
A bathroom under 40 sq ft does not need clever fittings. It needs three decisions in the right order: the wet zone in one corner, the WC off the floor, and the basin chosen by wall run rather than by looks. Get those right and a 6 ft x 6 ft room is perfectly comfortable. Get them wrong and no amount spent on taps will fix it, because the problem was never the taps — it was the 200 mm of floor you gave away before you started. Start with the tape measure, keep to one finish, and shop the bathroom vanity, toilets, shower panel and designer wash basin ranges once the drawing is settled.
