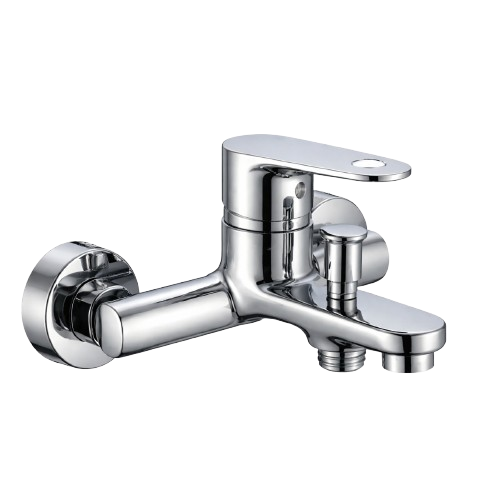

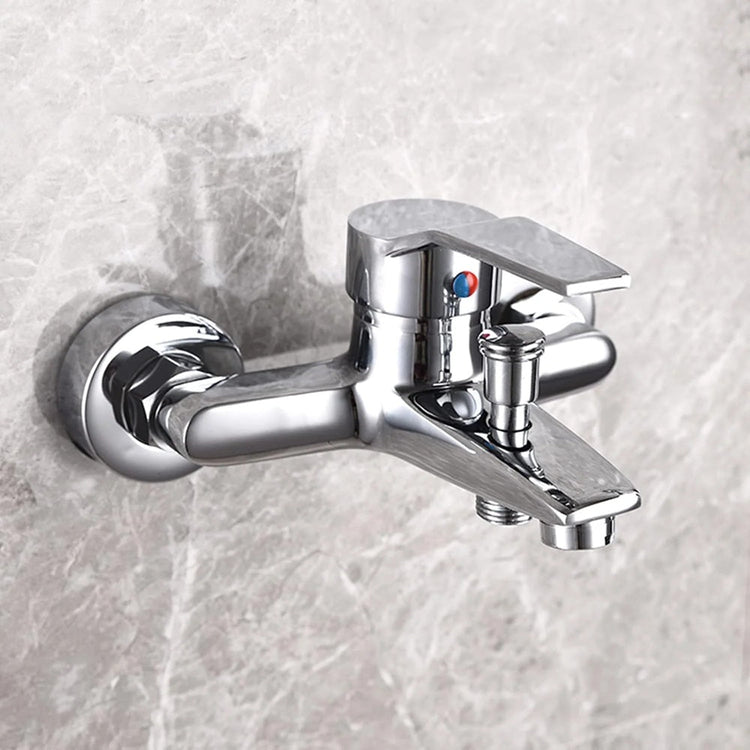

Single Lever Wall Mixer

A single lever wall mixer does the same job as a conventional two-handle wall mixer, but with one control instead of two. Move the lever up and down for volume, side to side for temperature, and the built-in diverter sends the mixed water to either of two outlets, normally the bath spout and the overhead shower. The practical advantage is real: one handle is quicker to set, easier to use with soapy hands, and leaves a cleaner wall. The mixers here are cast from solid lead-free brass ingot and plated in three layers, copper, then 10-micron nickel, then 0.3-micron chromium, over a quarter-turn ceramic disc cartridge tested beyond 5,00,000 operations. Prices run from around Rs 6,100 to Rs 6,200.

How to choose a single lever wall mixer

  • One lever or two handles. A single lever is faster and simpler to use. Two separate handles let you set the hot and cold sides independently, which some people prefer for fine control. Decide before the wall is tiled.
  • Two outlets is the limit here. These are two-way bodies: bath spout and overhead shower. If you also want a hand shower or a health faucet from the same mixer, you need a three-way wall mixer.
  • Confirm the inlet centres on site. The hot and cold pipe spacing in the wall is fixed once tiling is done, and a mismatch means breaking tiles to correct it.
  • Look at the cartridge. A ceramic disc cartridge is what stops a mixer dripping after a couple of years. It is the part that determines how long the fitting stays trouble-free.

Pressure and temperature in practice

A single lever wall mixer is a mechanical mixer, so it runs on gravity-fed overhead tank supply without a pump. What it holds is a ratio of hot to cold, not a temperature. If the geyser line and the cold line arrive at very different pressures, or if someone opens a tap elsewhere in the house, the mix at the shower head shifts. That is true of every manual mixer and it is the reason thermostatic fittings exist as a separate and much more expensive category. On hard water, work the diverter fully between outlets from time to time so scale does not build around the spindle.

Common questions

What is the difference between a single lever wall mixer and a regular wall mixer? The number of controls. A regular wall mixer has separate hot and cold handles. A single lever mixer sets both from one handle. Both divert between two outlets.

Can I add a health faucet to a two-way single lever mixer? Not from the mixer itself, since both outlets are already used by the spout and the overhead shower. Either move to a three-way wall mixer or run the health faucet from a separate angle valve.

Does it need a pressure pump? No. It works on overhead tank pressure. A pump improves how the overhead shower feels but the mixer does not require one.
